J15 Series
Improve the efficiency of more workers

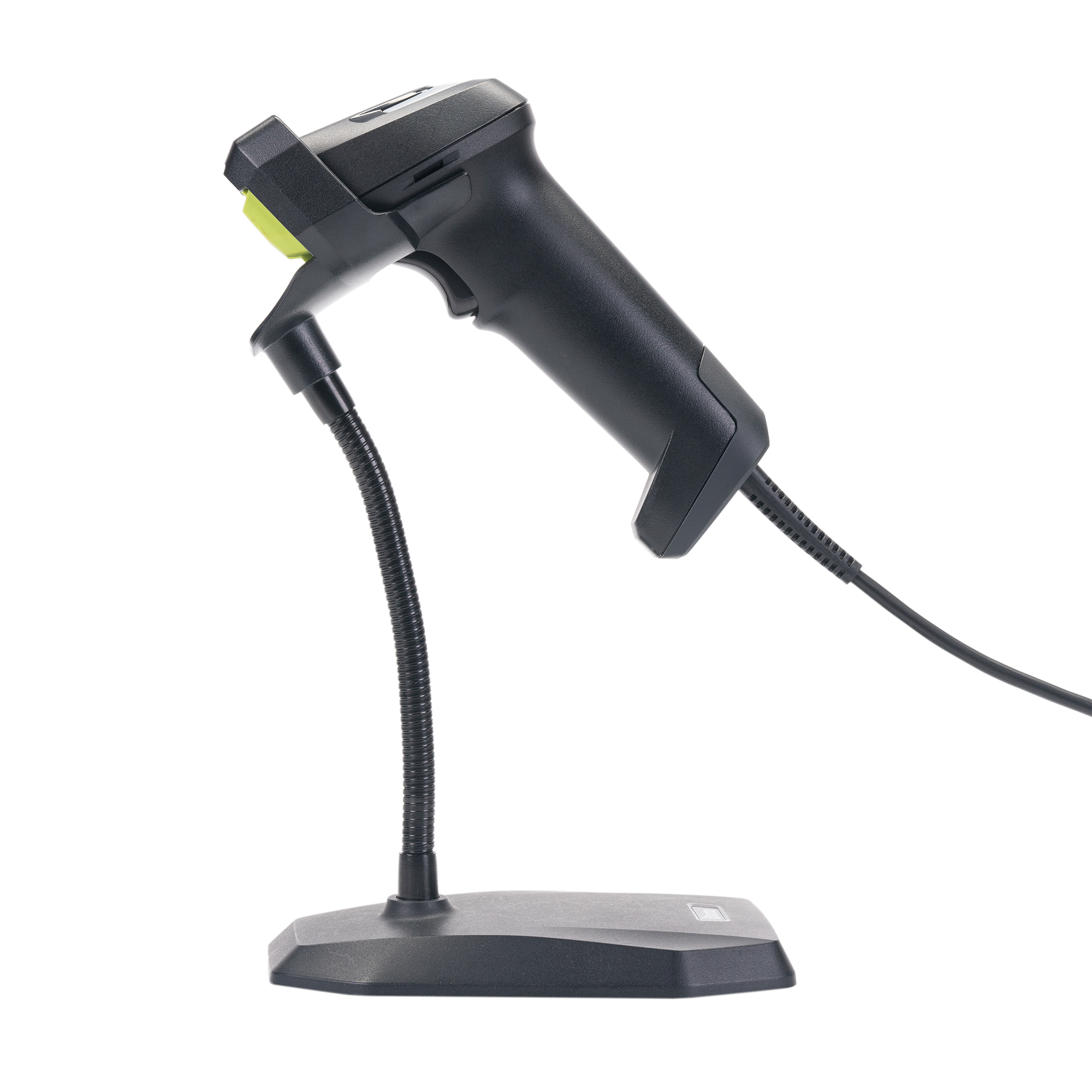

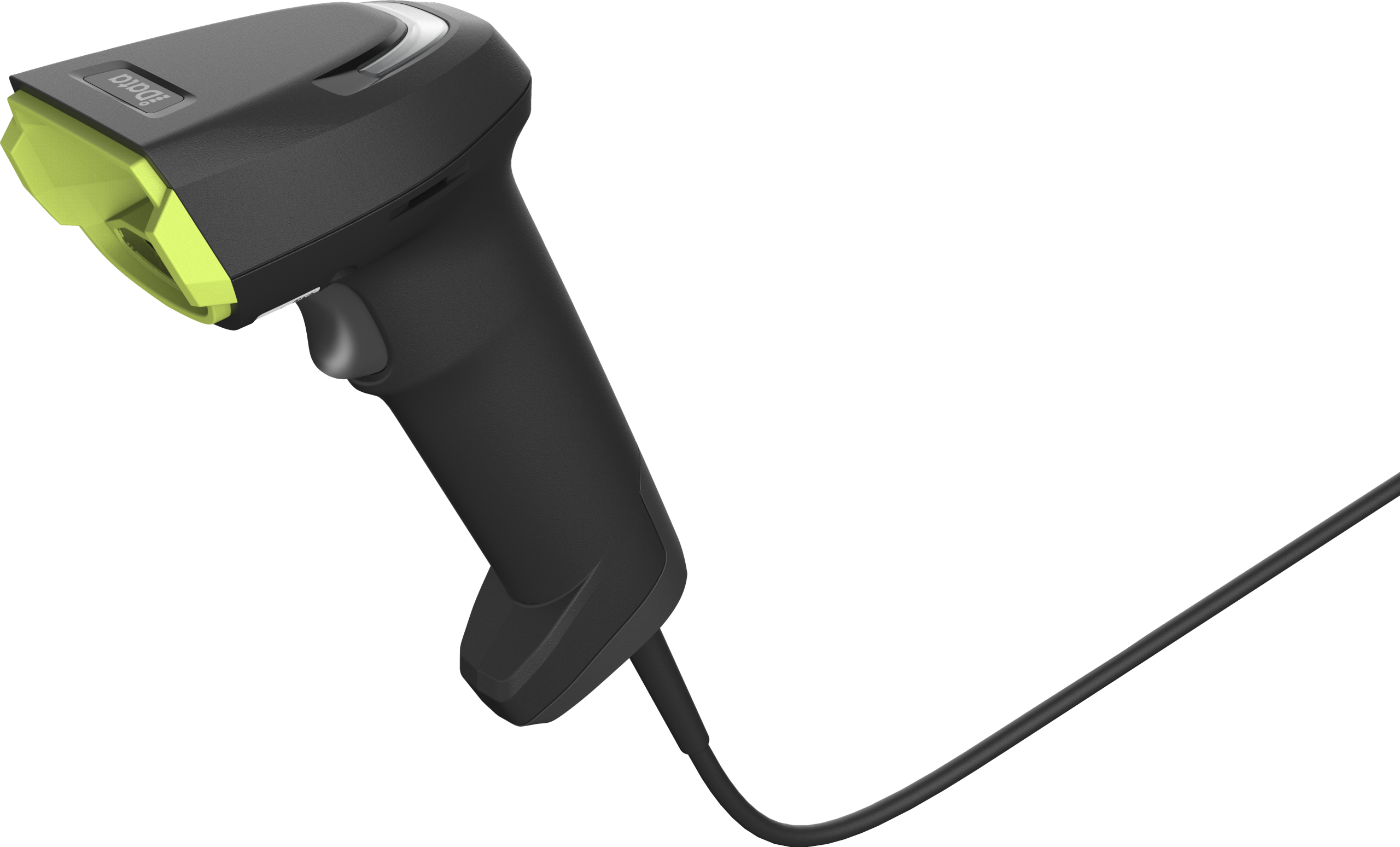

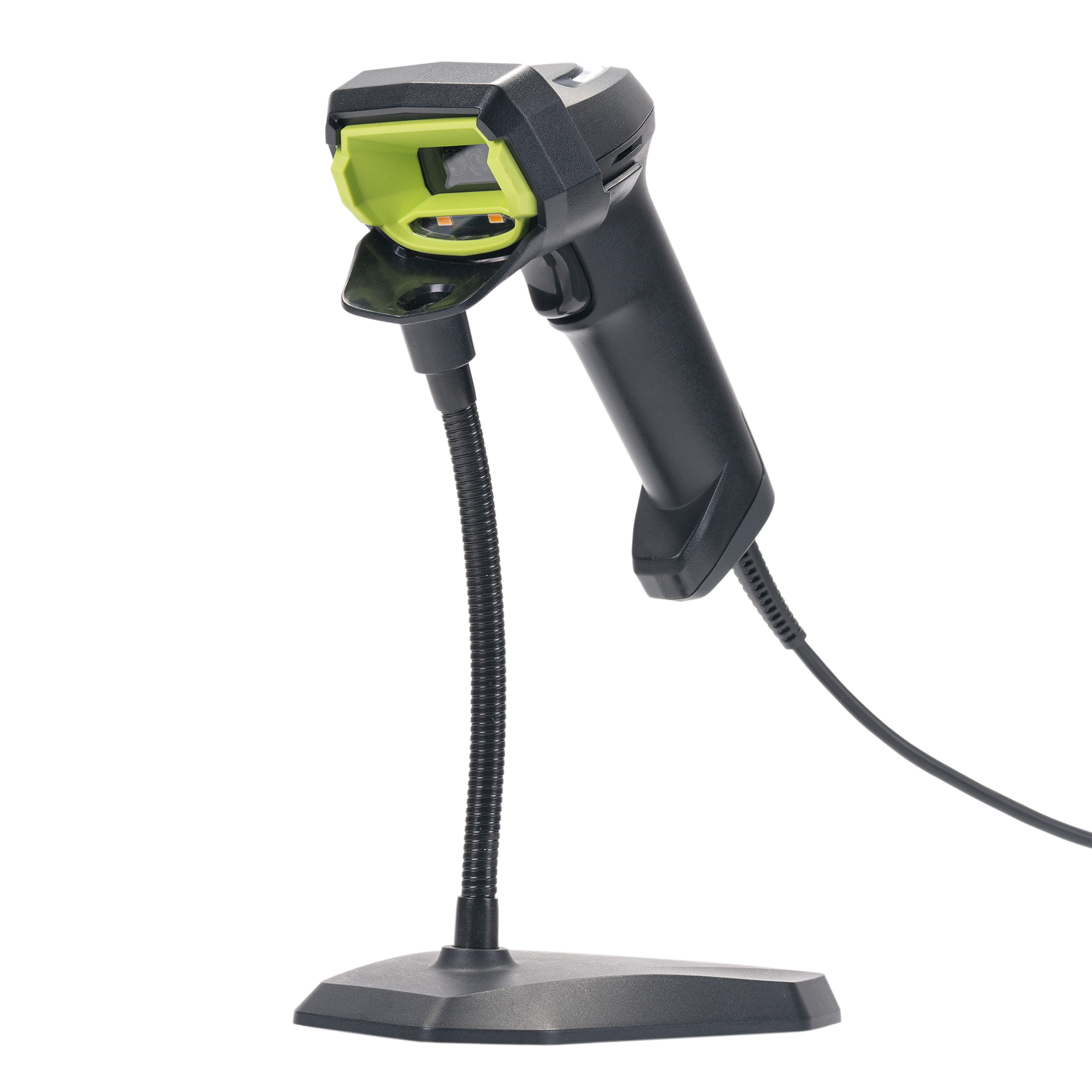

The iData J15 is a general-purpose scanner widely used in retail stores, logistics warehouses, and cargo distribution scenarios. It addresses changes in customer wait times, expands the scope of logistics and warehousing departments, and upgrades the work areas of employees in different sectors.
**Fast barcode reading with iData scanning technologies**
The combination of SoC NPU acceleration technology and SmartLight 3.0 resolution delivers superior barcode reading performance. Whether it’s broken barcodes on retail products, general appearance barcodes on shipping packages, or damaged barcodes, it quickly completes the identification and reading process, ensuring smooth and stable scanning.
**Comfortable scanning system**
The ergonomic and fluidly adjustable grip provides a comfortable and organized area, reducing fatigue and increasing scanning width. The high-rebound trigger button ensures finger comfort during intensive use, meets high-volume scanning capacities, and increases working comfort and frequency.
**Multiple system support, plug-and-play**
It works without drivers on Windows, Android, Linux, and other systems. It has high compatibility with systems in sectors such as retail, logistics, and warehousing; It is ready for immediate use without the need for complex setup and configurations.
Wired and wireless options to suit different needs.

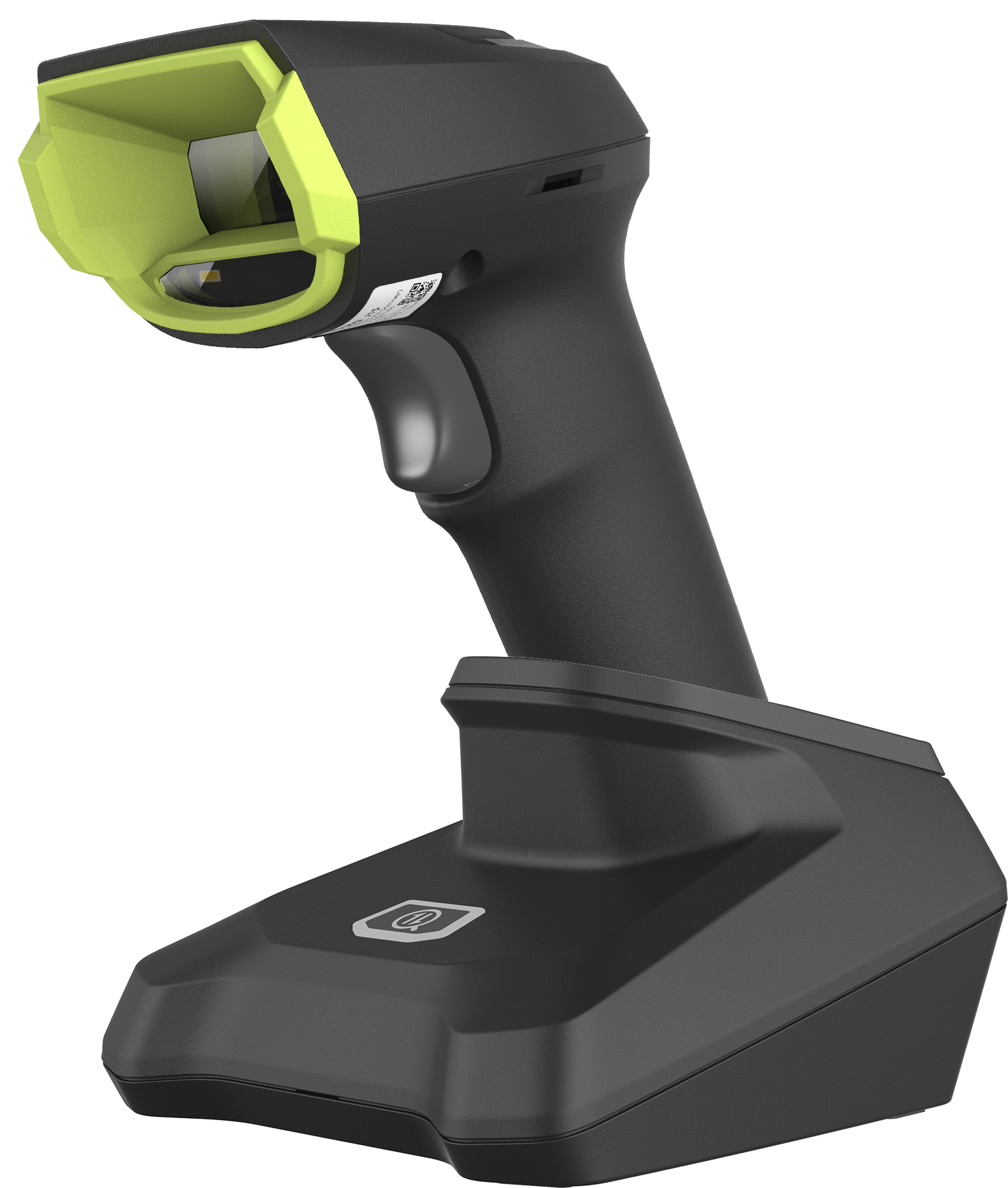

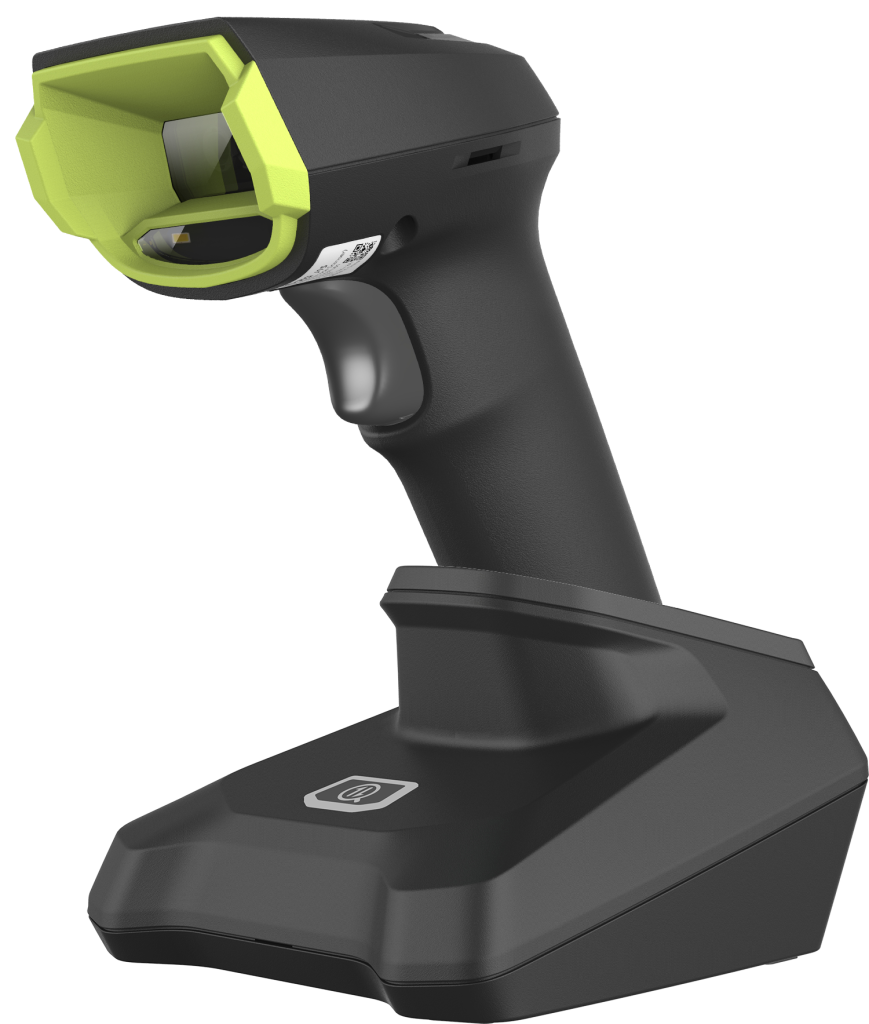

The wired version uses a standard USB interface and a universally connected RS232 serial port cable. The wireless version allows connection to the station via Bluetooth 5.0 and enables long-range scanning up to 70 meters. This allows users to operate it without the hassle of tangled cables.
We are increasing our business success with Technology
BTPLUS is a strategic business partner in the field of Information Technology, providing consulting, project design, system installation, management, support, sales of products from brands it represents, and data center services. BTPLUS offers services with experienced and competent engineers/consultants, project leaders, system support and sales teams in the IT field. Our teams are structured with the goal of fulfilling the needs of businesses with end-to-end solutions.
Our Vision
Our goal is to be a leading IT company in the digital world, providing efficient, secure, and sustainable solutions.
Our mission
Our goal is to provide our clients with the right and most suitable IT environment, taking ownership of their IT processes and managing them on their behalf, thus enabling them to focus on their core business and increasing their productivity and profitability.
E-CATALOG
Details about the J15 Browser
- General purpose barcode scanner used in retail, logistics and warehouses
- Fast and powerful barcode reading (SmartLight 3.0 + NPU support)
- Reads even damaged, blurry and wrinkled barcodes quickly
- Ergonomic design, comfortable grip and low fatigue
- High precision Suitable for heavy use with trigger.
- Plug-and-play compatible with Windows, Android, Linux
- Wired (USB / RS232) and wireless (Bluetooth 5.0, ~70 m) options
J15 Series Technical Specifications
Performance Parameters
| Item | Specification |
|---|---|
| Light Sensor | 1280 × 800 pixels |
| Light Source | White LED |
Physical Parameters
| Item | Specification |
|---|---|
| Dimensions (H×W×D) | 175.5 × 85.3 × 64.5 mm |
| Weight | Wired: 158 g / Wireless: 218 g |
| Working Voltage | 4.5V–5.5V (DC) |
| Working Current | 160 mA (typical), 400 mA (max) |
| Interface | USB HID, USB CDC, RS232 |
| Indicator | Buzzer / LED indicator |
| Housing Material | ABS |
Code System
| Type | Supported Codes |
|---|---|
| 1D | Code128, EAN-8, EAN-13, UPC-A, UPC-E, Codabar, Code11, Code39, Code93, Interleaved 2 of 5, Matrix 2 of 5, ITF-14, MSI, MSI/Plessey, GS1 DataBar, etc. |
| 2D | Aztec, Data Matrix, Micro PDF417, PDF417, QR Code, Han Xin Code, Grid Matrix, etc. |
Decoding Range
| Barcode Type | HD (High Density) | SR (Standard Range) |
|---|---|---|
| 3.33 mil Code128 | 4.5–12 cm | 8–13 cm |
| 10 mil Code128 | 2.5–20 cm | 3–44 cm |
| 10 mil QR Code | 2.5–15 cm | 5–25 cm |
| 20 mil QR Code | 2.5–22 cm | 2.5–46 cm |
Scanning Performance
| Item | Specification |
|---|---|
| Scanning Accuracy | ≥ 3 mil |
| Scanning Angle | Pitch: ±65°, Roll: ±45°, Tilt: 360° |
| Field of View | Horizontal: 36°, Vertical: 33°, Diagonal: 50.4° |
| Minimum Contrast | 15% |
| Motion Tolerance | 15 mil Code128: 15 m/s |
Environmental Parameters
| Item | Specification |
|---|---|
| Operating Temperature | 0°C to 50°C |
| Storage Temperature | -40°C to 70°C |
| Humidity | 5%–95% (non-condensing) |
| Ingress Protection | IP52 |
| Drop Resistance | 1.8 m drop to concrete |
| Ambient Light | 0–100,000 Lux |
| ESD Protection | ±15KV (air), ±8KV (contact) |
Wireless Transmission Performance (Bluetooth)
| Item | Specification |
|---|---|
| Bluetooth | Bluetooth 5.0 |
| Transmission Distance | Up to 70 m (open space) |
| Communication Mode | Real-time / Batch mode |
Scanning Configuration (Bluetooth)
| Item | Specification |
|---|---|
| Battery Capacity | ≥ 2600 mAh |
| Charging Time | 5 hours (5V/2A) |
| Working Time | ≥ 12 hours |
| Scan Times | Up to 10,000 scans per charge |
Regulations
| Item | Standard |
|---|---|
| Electrical Safety | IEC62368 |
| EMC | EN55032 |
| Environmental | RoHS, REACH |
| RF | FCC Part 15 Class B, EN 55032:2015 |
Accessories
| Type | Details |
|---|---|
| Standard | USB cable, user manual |
| Optional | Charging cradle, serial cable, desktop stand |
